MENHIR-1030 SERIES
Robust
femtosecond laser for high-end
applications
Our MENHIR-1030 Series is based on our successful technology platform, featuring robustness and reliability with MHz to GHz repetition-rate.
Key features
● Ultra-low noise
● Hermetically sealed laser
● All-in-one system
● Hermetically sealed laser
● All-in-one system
Key specifications
● Repetition rate: up to 2.5 GHz
● Clean soliton pulses: < 250 fs
● Clean soliton pulses: < 250 fs
MENHIR-1030 SERIES
Product specifications
MENHIR-1030 is available in various versions with different repetition rates.
Learn more about the characteristics of the 160 MHz and 1 GHz models.
MENHIR-1030 at 160 MHz
| frep | 160 MHz | |
| Power | > 100 mW | |
| λ0 | 1025 – 1054 nm | |
| Clean soliton pulse | ||
| Bandwidth | > 5 nm | |
| Pulse width | < 250 fs | |
| Sech2-shaped spectrum | ||
| Beam characteristics | TEM00, M2< 1.1 | |
MENHIR-1030 at 1 GHz
| frep | 1 GHz |
| Power | >30 mW |
| λ0 | 1025 – 1054 nm |
| Clean soliton pulse | |
| Bandwidth | > 5 nm |
| Pulse width | < 300 fs |
| Sech2-shaped spectrum | |
| Beam characteristics | TEM00, M2< 1.05 |

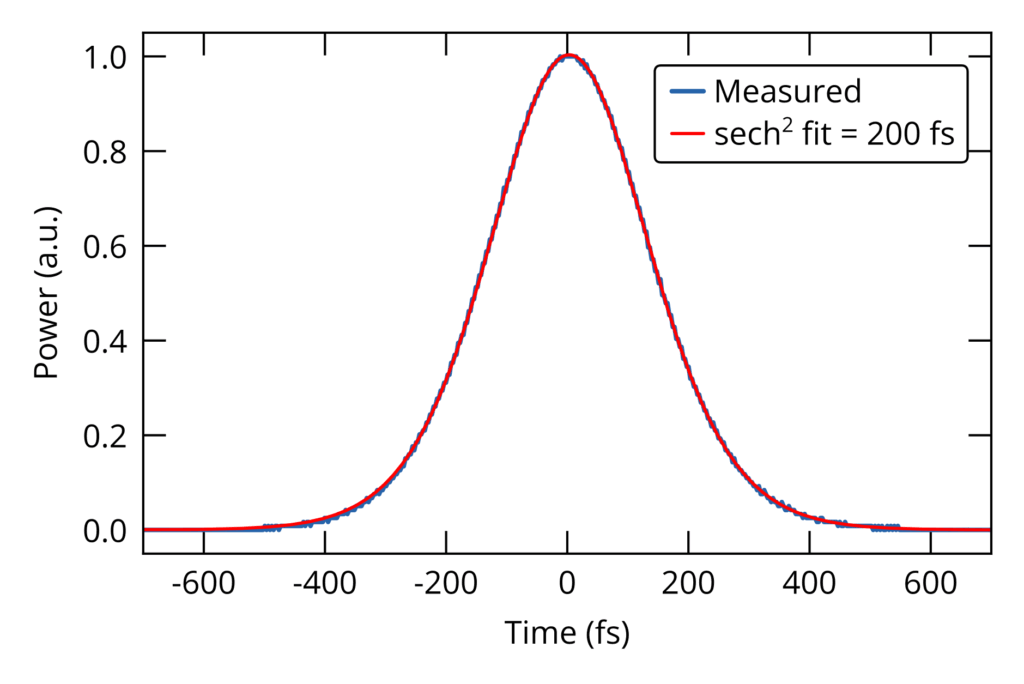

Soliton Pulses

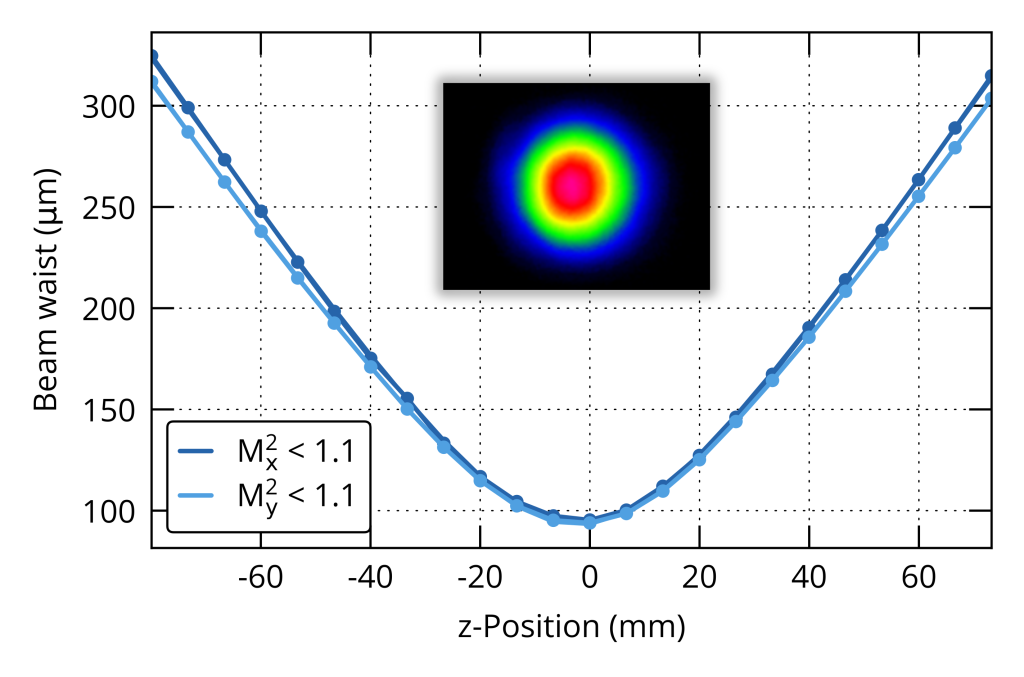

Gaussian Beam

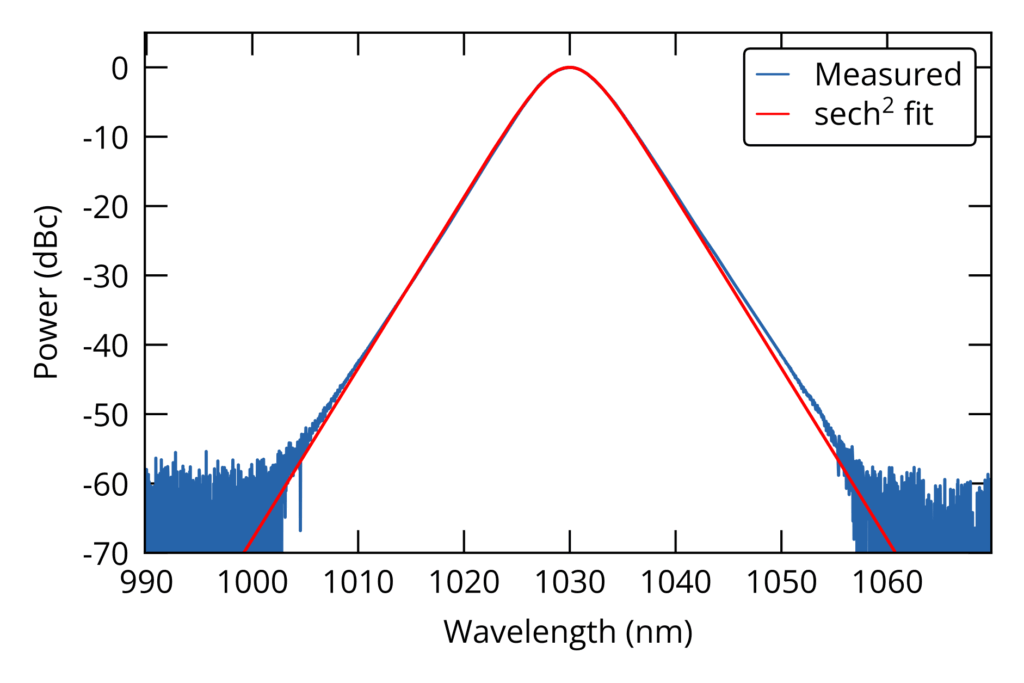

Clean optical spectrum
Clean RF trace
